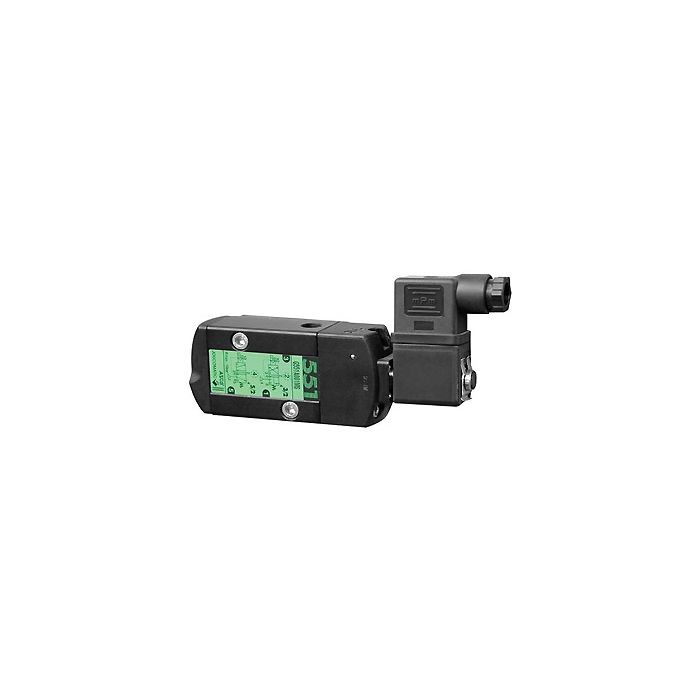

SCG551A001MS 24V 50Hz 3/2 - 5/2 NC - Namur Valve
Voltage - 24V 50Hz
Function - 3/2 or 5/2 supplied with interface plates
Pipe size - G1/4 bsp
Orifice size - 6mm
Flow coefficient kv - 0.75 (m3/h), 12.5 (l/min)
Operating pressure differential (bar) - 2 min
Operating pressure differential (bar) - 10 max
Body - Aluminium, black anodized
End covers + interface plates - Glass-filled PA
Internal parts - Zamak, stainless steel, (POM), aluminium
Seals - NBR + PUR
Core and plugnut - Stainless steel
Shading coil - Copper
Pilot operated or air operated, spool type single/dual solenoid or air (mono/bistable function) aluminium body, “NAMUR” style, 1/4
FEATURES
1/ The monostable spool valves have TÜV-EXIDA certified IEC 61508 Functional Safety data and can be used up to SIL 4 (551/TÜV)-SIL 3 (552-553/EXIDA)
2/ The spool valves have threaded port connections and "NAMUR" style interface
3/ The same spool valve can be adapted for 3/2 NC or 5/2 function for controlling double-acting and single-acting actuators
4/ All the exhaust ports of this spool valve are connectable, providing better environmental protection, particularly recommended for sensitive areas such as clean rooms, and applications in the pharmaceutical and food processing sectors
5/ The valve offers environmental protection against the ingress of liquids, dusts or any other foreign matter (environmentally-protected construction)
6/ Epoxy moulded coil for general service applications
7/ The solenoid valves satisfy all relevant EC Directives
Product Name | SCG551A001MS 24V 50Hz 3/2 - 5/2 NC - Namur Valve |
---|---|
SKU | SCG551A001MS 24V 50HZ |
Product Code | 551 |
Stock Status | Usually Ships Sameday |
Timed Deliveries | Timed Deliveries Available On This Product |
Weight KG | 0.800000 |
International Article Number (EAN) | n/a |
Export Commodity Code | 84818099 |
Manufacturer | ASCO |
Country of Origin | (EU) |
