Standard Pumps For Tap Water Type PAH

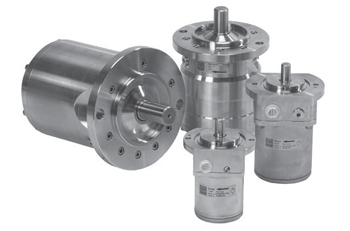

High-pressure pump range based on the axial piston principle (5–9 pistons) enabling a very light and compact design. Very low pulsation and airborne noise.
PAH 2/4/6.3, PAH 10/12.5, PAH 20/25/32 and PAH 50/63/70/80/100 are pumps designed to supply water flow under high pressure. The pumps are based on the axial piston principle enabling a very light and compact design.
The pumps are designed so that lubrication of the moving parts in the pumps is provided by the water itself. No oil lubrication is thus required.
All parts included in the pumps are designed to provide long service life, i.e. long service life with a constantly high efficiency and minimum of service required.
The pumps are fixed displacement pumps where the flow is proportional to the number of revolutions of the input shaft and the pump displacement.
For the complete range of Danfoss PAH Tap Water Pumps go to our dedicated website: High Pressure Water Equipment - PAH Pumps
| Standard Pumps for Tap Water CW Rotation | |||||||
| Type | Flow at 1500 rpm | Max. Shaft Speed | Maximum Pressure | Ports/ Connection | House Material | Weight kg | Ordering Code |
|---|---|---|---|---|---|---|---|
| PAH 2 | 2.0 l/min | 3000 | 140 bar | G½ , G¼ | AISI 304 | 4,4 | 180B0024 |
| PAH 4 | 5.0 l/min | 3000 | 140 bar | G½ , G¼ | AISI 304 | 4,4 | 180B0022 |
| PAH 6.3 | 8.4 l/min | 3000 | 140 bar | G½ , G¼ | AISI 304 | 4,4 | 180B0023 |
| PAH 10 | 13.1 l/min | 3000 | 160 bar | G³⁄₈ , G¾ | AISI 304 | 7,7 | 180B0008 |
| PAH 12.5 | 16.7 l/min | 3000 | 160 bar | G³⁄₈ , G¾ | AISI 304 | 7,7 | 180B0007 |
| PAH 20 | 26,7 l/min | 2400 | 100 bar | G1¼ , G¾ | AISI 304 | 16 | 180B0079 |
| PAH 25 | 34.5 l/min | 2400 | 160 bar | G1¼ , G¾ | AISI 304 | 16 | 180B0036 |
| PAH 32 | 45.3 l/min | 2400 | 160 bar | G1¼ , G¾ | AISI 304 | 16 | 180B0037 |
| PAH 50 | 67.1 l/min | 2200 | 100 bar | G1½ , G1¼ | AISI 304 | 31 | 180B0047 |
| PAH 63 | 86.5 l/min | 2200 | 160 bar | G1½ , G1¼ | AISI 304 | 31 | 180B0040 |
| PAH 70 | 96.1 l/min | 2000 | 160 bar | G1½ , G1¼ | AISI 304 | 31 | 180B0042 |
| PAH 80 | 111.0 l/min | 1800 | 160 bar | G1½ , G1¼ | AISI 304 | 31 | 180B0041 |
| PAH 100 | 142.0 l/min | 1500 | 120 bar | G1½ , G1¼ | AISI 304 | 31 | 180B0076 |
| Standard Pumps for Tap Water CCW Rotation | |||||||
| Type | Flow at 1500 rpm | Max. Shaft Speed | Maximum Pressure | Ports/ Connection | House Material | Weight kg | Ordering Code |
|---|---|---|---|---|---|---|---|
| PAH 25 CCW | 34.5 l/min | 2400 | 160 bar | G1¼ , G¾ | AISI 304 | 16 | 180B0060 |
| PAH 32 CCW | 45.3 l/min | 2400 | 160 bar | G1¼ , G¾ | AISI 304 | 16 | 180B0061 |
| PAH 80 CCW | 111.0 l/min | 1800 | 160 bar | G1½ , G1¼ | AISI 304 | 31 | 180B0066 |
| Spare Part Kits (all kits include service instruction) | |||||
| Pump Range | Description | Pos. No. Included from exploded view drawing | Service Instruction | Weight kg | Ordering Code |
|---|---|---|---|---|---|
| PAH 2-6,3 | Shaft seal kit | 9,12,27,29,31 | 180R9094 | 0,2 | 180B4100 |
| PAH 2-6,3 | Oring kit | 180R9094 | 0,1 | 180B4173 | |
| PAH 2-6,3 | Valve plate kit | 5,6,7,8 | 180R9094 | 0,3 | 180B4101 |
| PAH 2 | Piston kit | 4,18,19,22 | 180R9094 | 0,3 | 180B4110 |
| PAH 4-6,3 | Piston kit | 2,4,18,19,22 | 180R9094 | 0,3 | 180B4111 |
| PAH 2-6,3 | Cylinder barrel kit | 14 | 180R9094 | 1 | 180B4112 |
| PAH 10-12,5 | Shaft seal kit | 13,15,17,18,27,34,35 | 180R0022 | 0,2 | 180B4105 |
| PAH 10-12,5 | Oring kit | 180R9094 | 0,1 | 180B4174 | |
| PAH 10-12,5 | Valve plate kit | 9,10,20,21 | 180R0022 | 0,4 | 180B4108 |
| PAH 10-12,5 | Piston kit | 4,5,7,22,26 | 180R0022 | 0,6 | 180B4114 |
| PAH 10-12,5 | Cylinder barrel kit | 7 | 180R0022 | 1,9 | 180B4113 |
| PAH 2-12,5 | Tool set shaft sealing | | | 0,2 | 180Z0235 |
| PAH 20-32 | Shaft seal kit | 4,7,26,30,33,34,35 | 180R9097 | 0,4 | 180B4115 |
| PAH 20-32 | Oring kit | 180R9094 | 0,1 | 180B4175 | |
| PAH 20-32 | Valve plate kit | 12,13,14,21 | 180R9097 | 0,7 | 180B4116 |
| PAH 20-32 | Piston kit | 10,11,16 | 180R9097 | 1,2 | 180B4119 |
| PAH 20-32 | Cylinder barrel kit | 17 | 180R9097 | 0,09 | 180B4120 |
| PAH 20-32 | Tool set shaft sealing | | | 0,2 | 180Z0236 |
| PAH 50-100 | Shaft seal kit | 4,7,24,26,30,33,34 | 180R0040 | 0,5 | 180B4121 |
| PAH 50-100 | Oring kit | 180R9094 | 0,1 | 180B4176 | |
| PAH 50-100 | Valve plate kit | 12,13,14,21 | 180R0040 | 1,5 | 180B4122 |
| PAH 50-100 | Piston kit | 10,11,16 | 180R0040 | 2,1 | 180B4125 |
| PAH 50-100 | Cylinder barrel kit | 17 | 180R0040 | 7,3 | 180B4126 |
| PAH 50-100 | Tool set shaft sealing | | | 0,4 | 180Z0237 |
Technical Data Sheet
Pumps type PAH 2/4/6.3, PAH 10/12.5, PAH 20/25/32 and PAH 50/63/70/80/100 - Download pdf (1.07mb)
