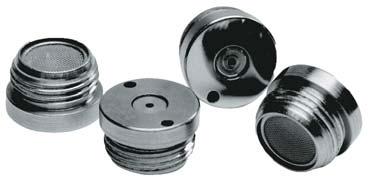

Nozzles

Danfoss range of nozzles are tailored to atomize water in high-pressure water mist systems

For applications using tap water like lumber drying and fire fighting, a broad range is available.
• Operating pressures 70 and 100 bar / 1000 and 1450 PSI
• Corresponding capacity ranges within
   3 - 25 l/hour / 0.8 - 6.6 GPH (nozzle thread 9/16-24 UNEF)
   25 - 340 l/hour / 6.6 - 91.2 GPH (nozzle thread M13x1)
• Conical spray pattern
• Stainless steel material, integrated strainer
• Long service life
• Nozzle adapters and tools available

For applications using tap water as well as treated water for comfort humidity control and adiabatic cooling, a range of water mist nozzles with anti-drip function is available.

• Anti-Drip function (integrated spring loaded check valve approx. 5bar / 72 PSI)
• Operating pressure 70 and 100 bar / 1000 and 1450 PSI
• Capacity ranges within 1.5 to 25 l/hour / 0.4 - 6.6 GPH (nozzle thread 12/24 UNC)
• Excellent spray pattern
• Stainless steel material
• Long service life
• Nozzle adapters available
• Extensive and thoroughly customized range of nozzle racks available for standard air-handling units and custom-made industrial high-pressure humidifiers

For the complete range of Danfoss High Pressure Water Nozzles go to our dedicated website: High Pressure Water Equipment - Nozzles


Nozzles for High Flow with Low Building Height and Strainer, 60° Spray Angle (12 piece packaging)
Type Flow @ 100 bar

Flow @ 100 bar

Maximum
Pressure
Threads House/
Nozzle Mat.
Weight
kg
Ordering
Code
Open  25.2 0.42 130 bar  M13 x 1mm  316/430  0,1  180Z1910
Open  55,2  0.92 130 bar  M13 x 1mm  316/430  0,1  180Z1915
Open  75 1.25 130 bar  M13 x 1mm  316/430  0,1  180Z1918
Open  93 1.55 130 bar  M13 x 1mm  316/430  0,1  180Z1920
Open  105 1.75 130 bar  M13 x 1mm  316/430  0,1  180Z1922
Open  130 2.18 130 bar  M13 x 1mm  316/430  0,1  180Z1924
Open  143 2.39 130 bar  M13 x 1mm  316/430  0,1  180Z1934
Open  172 2.87 130 bar  M13 x 1mm  316/430  0,1  180Z1926
Open  188 3.13 130 bar  M13 x 1mm  316/430  0,1  180Z1937
Open  202 3.36 130 bar  M13 x 1mm  316/430  0,1  180Z1927
Open  246 4.11 130 bar  M13 x 1mm  316/430  0,1  180Z1928
Open  282 4.7 130 bar  M13 x 1mm  316/430  0,1  180Z1929
Open  344 5.74 130 bar  M13 x 1mm  316/430  0,1  180Z1931

Nozzles for Low Flow with High Building Height and Filter, 60° Spray Angle (12 piece packaging)
Type Flow @ 70 bar

Flow @ 70 bar

Maximum
Pressure
Threads House/
Nozzle Mat.
Weight
kg
Ordering
Code
Open  3 0.05 100 bar  9/16­24 UNF  AISI 416  0,1  180Z6002
Open  5 0.08 100 bar  9/16­24 UNF  AISI 416  0,1  180Z6008
Open  7.5 0.13 100 bar  9/16­24 UNF  AISI 416  0,1  180Z6016
Open  10 0.17 100 bar  9/16­24 UNF  AISI 416  0,1  180Z6020
Open  12.5 0.21 100 bar  9/16­24 UNF  AISI 416  0,1  180Z6024
Open  15 0.25 100 bar  9/16­24 UNF  AISI 416  0,1  180Z6028
Open  17.5 0.29 100 bar  9/16­24 UNF  AISI 416  0,1  180Z6030
Open  20 0.33 100 bar  9/16­24 UNF  AISI 416  0,1  180Z6032
Open  25 0.42 100 bar  9/16­24 UNF  AISI 416  0,1  180Z6036

Nozzles for Low Flow With Anti Drip Check Valve, 60° Spray Angle (12 piece packaging)
Type Flow @ 70 bar

Flow @ 70 bar

Maximum
Pressure
Threads House/
Nozzle Mat.
Weight
kg
Ordering
Code
With check valve  1,74  0,029  70 bar  12/24 UNF  AISI304  0,1  180Z1952
With check valve  3 0.05 70 bar  12/24 UNF  AISI304  0,1  180Z1939
With check valve  4 0.067 70 bar  10/24 UNF  AISI304  0,1  180Z1946
With check valve  4 0.067 70 bar  12/24 UNF  AISI304  0,1  180Z1940
With check valve  4.9 0.082 70 bar  10/24 UNF  AISI304  0,1  180Z1947
With check valve  4.9 0.082 70 bar  12/24 UNF  AISI304  0,1  180Z1941
With check valve  6.8 0.113 70 bar  12/24 UNF  AISI304  0,1  180Z1949
With check valve  8.5 0.142 70 bar  12/24 UNF  AISI304  0,1  180Z1944
With check valve  10.3 0.172 70 bar  12/24 UNF  AISI304  0,1  180Z1945
With check valve  11.2 0.189 70 bar  12/24 UNF  AISI304  0,1  180Z1948
With check valve  13.8 0.23 70 bar  12/24 UNF  AISI304  0,1  180Z1950
With check valve  16.4 0.274 70 bar  12/24 UNF  AISI304  0,1  180Z1951
Blind plug 12/24 UNC  - ­- ­- 12/24 UNF  AISI304  0,1  180Z1938



Adaptors for Nozzles (12 piece packaging)
Type Nozzle
Thread
Adaptor
Version
House
Material
Weight
kg
Ordering
Code
Type 1  M13 x 1mm  12 mm pipe for press ring  AISI 316  0,1  180Z0009
Type 2  9/16­24 UNF  12 mm pipe for press ring  AISI 316  0,1  180Z0017
Type 3  M13 x 1mm  1/4" NPT inner thread  AISI 316  0,1  180Z0027
Type 4  M13 x 1mm  3/8" NPT outer threads  AISI 316  0,1  180Z0028
Version no. 1  12/24 UNC  12 mm pipe for press ring  AISI 304  0,1  180Z0022
Version no. 2  12/24 UNC  10 mm pipe for press ring  AISI 304  0,1  180Z0023
Version no. 3  12/24 UNC  3/8" NPT outer threads  AISI 304  0,1  180Z0029
Version no. 4  12/24 UNC  3/8" mm pipe for press ring  AISI 304  0,1  180Z0047



Mounting Tool for WM Nozzles with M13 x 1mm Thread
Type House
Material
Weight
kg
Ordering
Code
Tool    0,1  180Z0021


Technical Data Sheet

Danfoss water mist nozzles  -  Download pdf (942kb)
