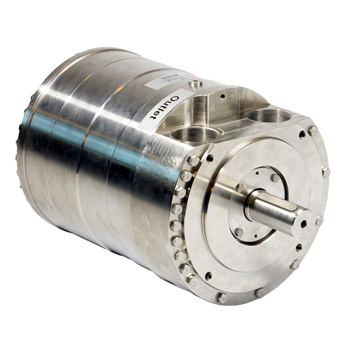

High Pressure Pumps For Technical Water Type PAHT
The Danfoss PAHT High-Pressure water pumps are specifically designed for operation on technical water.
Nine pump sizes with displacements from 20 to 308 ccm/rev are available providing flow in the range from 9-338 l/min. (2-90 GPM)
The axial piston principle provides very high efficiency, small and compact design and long service life.
The Danfoss pumps are water lubricated and do not involve any other lubricant making this unique pump maintenance free over its entire service life.
Benefits:
• Maintenance free due to water lubrication and direct drive (no belt or gearbox)
• Very high efficiency compared to any other pump on the market
• Small, compact and light design
• Negligible pressure pulsation, no need for pulsation dampeners
• Extreme recirculation capability without overheating (up to 90% flow at 20o C)
• Wide speed control range
• Stainless steel design AISI 316 (W. No. 1.4401).
• Fulfils most stringent hygiene requirements, i.e. VDI 6022, HACCP
• Suitable for both boosted inlet pressure and water supply from a tank
• Available as ATEX certified
• Can be powered by a Combustion engine
• 3.2 approvals available according to EN10204 (ABS, Lloydsore costumer request)
Application examples:
• Adiabatic cooling systems
• Dust suppression and odour control systems
• Turbine industry:
- Inlet fogging
- Wet compression
- NOx-control
- Fire suppression
- Compressor wash
• NOx-control in Diesel engines
• High-pressure cleaning functions with DI/RO water
For the complete range of Danfoss PAHT Pumps go to our dedicated website: High Pressure Water Equipment - PAHT Pumps
| Pumps for Technical Water (Deminerilised, Distilled, RO, Softened-water) for Boosted Applications | |||||||
| Type | Flow at 1500 rpm | Maximum Shaft Speed | Maximum Pressure | Ports/ Connection | House Material | Weight kg | Ordering Code |
|---|---|---|---|---|---|---|---|
| PAHT 20 | 27,7 l/min | 1800 | 80 bar | G1¼ , G¾ | AISI 316 | 19 | 180B0019 |
| PAHT 25 | 33,5 l/,in | 1800 | 160 bar | G1¼ , G¾ | AISI 316 | 19 | 180B0020 |
| PAHT 32 | 45,0 l/min | 1800 | 160 bar | G1¼ , G¾ | AISI 316 | 19 | 180B0021 |
| PAHT 50 | 60,1 l/min | 1800 | 80 bar | G1½ , G1 | AISI 316 | 34 | 180B0085 |
| PAHT 63 | 85.0l/min | 1800 | 160 bar | G1½ , G1 | AISI 316 | 34 | 180B0086 |
| PAHT 70 | 95.3 l/min | 1800 | 160 bar | G1½ , G1 | AISI 316 | 34 | 180B0087 |
| PAHT 80 | 110.0 l/min | 1800 | 160 bar | G1½ , G1 | AISI 316 | 34 | 180B0088 |
| PAHT 90 | 124.0 l/min | 1800 | 160 bar | G1½ , G1 | AISI 316 | 34 | 180B0089 |
| PAHT 256 | 280.0 l/min | 1250 | 120 bar | G2 , G1½ | AISI 316 | 131 | 180B1001 |
| Spare Part Kits (all kits include service instruction) | |||||
|
Technical Water Pump Range |
Description |
Pos. No. Included from exploded view drawing |
Service Instruction |
Weight kg |
Ordering Code |
|---|---|---|---|---|---|
| PAHT 20-32 | Screw and Orings kit | 2,5,9,122,128, | 180R9175 | 0,32 | 180B4055 |
| PAHT 20-32 | Tool set shaft sealing | - | - | 0,19 | 180Z0236 |
| PAHT 20-32 | Cylinder barrel kit | 61 | 180R9175 | 3,52 | 180B4054 |
| PAHT 20-32 | Piston kit | 62,63,64,65,66 | 180R9175 | 0,89 | 180B4053 |
| PAHT 20-32 | Valve plate kit | 91,92,93,94,126 | 180R9175 | 0,35 | 180B4052 |
| PAHT 20-32 | Shaft seal kit | 9,67,122,123,124,127,135 | 180R9175 | 0,36 | 180B4051 |
| PAHT 50-90 | Cylinder barrel kit | 61 | 180R9172 | 7,5 | 180B4195 |
| PAHT 50-70 | Valve plate kit | 91,92,93,94,126 | 180R9172 | 5 | 180B4192 |
| PAHT 50-90 | Screw and Orings kit | 2,5,9,122,128 | 180R9172 | 0,1 | 180B4196 |
| PAHT 50-90 | Shaft seal kit | 9,67,70,122,123,124,127,135 | 180R9172 | 0,25 | 180B4191 |
| PAHT 50-90 | Piston kit | 62,64,65,66,71 | 180R9172 | 2,8 | 180B4194 |
| PAHT 80-90 | Valve plate kit | 91,92,93,94,126 | 180R9172 | 5 | 180B4193 |
Technical Data Sheet
High pressure pumps for technical water, type PAHT - Download pdf (3.13mb)
