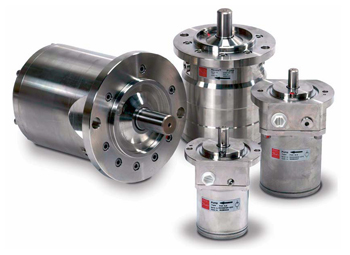

Pumps Intended For Use In ATEX Classified Areas Types PAH, PAHT
The Danfoss PAH / PAHT pump product programme, covering tap water and technical water operation, is also available ATEX “certified”.
The pumps can be used in Category 2 (Zone1, 21) and Category 3 (Zone2, 22) classified areas. The pump temperature class is T6 < 85°C. Operational and physical data can be found in the respective pump data sheets.
Validity:
Approvals are only related to water as fluid. Other fluids, if any, must be non-flammable and comply with standard EN 13463-5 § 7.5.5. The pumps are designed to pump liquids and not gases! It is the user’s responsibility to ensure that the pump is filled with fluid.
Fluids:
If the pump is to operate on other fluids than water, please contact Danfoss. Other operation and maintenance conditions might apply.
Minimum suction pressure:
The user must always ensure that the pump is filled with the fluid to be pumped. The pumps must always be operated with a “positive head” on suction port. The minimum and maximum allowable inlet pressure for the suction port can be found in the pump data sheet.
Maximum discharge pressure:
It is the user’s responsibility to ensure that the pump discharge pressure does not exceed the max continuous discharge pressure + 10% stated in the pump data sheet.
Temperature:
The pump is not to be used in systems where the fluid temperature exceeds 50°C /122°F.
Filtration:
Fluids to be used in the pump must as a minimum always be filtered according to the specification found in the pump data sheet.
External impacts due to: Gases:
The pumps are made of materials resistant to most common gases. The user of the pump must ensure that materials used are resistant to the gases applied.
Dust:
The pumps may be used in “Dust Certified Areas “– but the pump housing must be cleaned regularly and always when the dust layer is exceeding 5 mm (0.2 inch). It is the user’s responsibility that the dust generated in the area of operation is compatible with the materials applied for the pump.
For the complete range of Danfoss ATEX Approved Water Pumps go to our dedicated website: High Pressure Water Equipment - ATEX Pumps
| Standard Pumps for Tap Water CW Rotation | |||||||
| Type | Flow at 1500 rpm | Maximum Shaft Speed | Maximum Pressure | Ports/ Connection | House Material | Weight kg | Ordering code |
|---|---|---|---|---|---|---|---|
| PAH 2 | 2.0 l/min | 3000 | 140 bar | G½ , G¼ | AISI 304 | 4,4 | 180B6124 |
| PAH 4 | 5.0 l/min | 3000 | 140 bar | G½ , G¼ | AISI 304 | 4,4 | 180B6122 |
| PAH 6.3 | 8.4 l/min | 3000 | 140 bar | G½ , G¼ | AISI 304 | 4,4 | 180B6123 |
| PAH 10 | 13.1 l/min | 3000 | 160 bar | G³⁄₈ , G¾ | AISI 304 | 7,7 | 180B6108 |
| PAH 12.5 | 16.7 l/min | 3000 | 160 bar | G³⁄₈ , G¾ | AISI 304 | 7,7 | 180B6107 |
| PAH 20 | 27.0 l/min | 2400 | 80 bar | G1¼ , G¾ | AISI 304 | 16 | 180B6179 |
| PAH 25 | 34.5 l/min | 2400 | 160 bar | G1¼ , G¾ | AISI 304 | 16 | 180B6136 |
| PAH 32 | 45.3 l/min | 2400 | 160 bar | G1¼ , G¾ | AISI 304 | 16 | 180B6137 |
| PAH 50 | 67.1 l/min | 2200 | 100 bar | G1½ , G1¼ | AISI 304 | 31 | 180B6147 |
| PAH 63 | 86.5 l/min | 2200 | 160 bar | G1½ , G1¼ | AISI 304 | 31 | 180B6140 |
| PAH 70 | 96.1 l/min | 2000 | 160 bar | G1½ , G1¼ | AISI 304 | 31 | 180B6142 |
| PAH 80 | 111.0 l/min | 1800 | 160 bar | G1½ , G1¼ | AISI 304 | 31 | 180B6141 |
| PAH 100 | 138.0 l/min | 1500 | 80 bar | G1½ , G1¼ | AISI 304 | 31 | 180B6176 |
| Pumps for Technical Water (Demineralised, Distilled, RO, Softened-water) | |||||||
| Type | Flow at 1500 rpm | Maximum Shaft Speed | Maximum Pressure | Ports/ Connection | House Material | Weight kg | Ordering code |
| PAH 2 | 1.9 l/min | 3000 | 100 bar | G½ , G¼ | AISI 304 | 4,4 | 180B6131 |
| PAH 3.2 | 3,0 l/min | 3000 | 100 bar | G½ , G¼ | AISI 304 | 4,4 | 180B6177 |
| PAH 4 | 4.7 l/min | 3000 | 100 bar | G½ , G¼ | AISI 304 | 4,4 | 180B6130 |
| PAH 6.3 | 8.0 l/min | 3000 | 100 bar | G½ , G¼ | AISI 304 | 4,4 | 180B6129 |
| PAH 10 | 12.8 l/min | 3000 | 140 bar | G³⁄₈ , G¾ | AISI 304 | 7,7 | 180B6132 |
| PAH 12.5 | 16.7 l/min | 3000 | 140 bar | G³⁄₈ , G¾ | AISI 304 | 7,7 | 180B6133 |
| PAH 25 | 33.5 l/min | 2400 | 140 bar | G1¼ , G¾ | AISI 304 | 16 | 180B6138 |
| PAH 32 | 43.8 l/min | 2400 | 140 bar | G1¼ , G¾ | AISI 304 | 16 | 180B6139 |
| PAH 50 | 60,1 l/min | 1800 | 140 bar | G1½ , G1¼ | AISI 304 | 31 | 180B6146 |
| PAH 63 | 85.0l/min | 1800 | 140 bar | G1½ , G1¼ | AISI 304 | 31 | 180B6143 |
| PAH 70 | 95.3 l/min | 1800 | 140 bar | G1½ , G1¼ | AISI 304 | 31 | 180B6144 |
| PAH 80 | 110.0 l/min | 1800 | 140 bar | G1½ , G1¼ | AISI 304 | 31 | 180B6145 |
| Pumps for Technical Water (Demineralised, Distilled, RO, Softened-water) for Boosted Applications | |||||||
| Type | Flow at 1500 rpm | Maximum shaft speed | Maximum Pressure | Ports/ Connection | House Material | Weight kg | Ordering code |
|---|---|---|---|---|---|---|---|
| PAHT 20 | 27.7 l/min | 1800 | 80 bar | G1¼ , G¾ | AISI 316 | 19 | 180B6119 |
| PAHT 25 | 33.4 l/min | 1800 | 160 bar | G1¼ , G¾ | AISI 316 | 19 | 180B6120 |
| PAHT 32 | 45.0 l/min | 1800 | 160 bar | G1¼ , G¾ | AISI 316 | 19 | 180B6121 |
| PAHT 50 | 60,1 l/min | 1800 | 160 bar | G1½ , G1 | AISI 316 | 34 | 180B6185 |
| PAHT 63 | 85.0l/min | 1800 | 160 bar | G1½ , G1 | AISI 316 | 34 | 180B6186 |
| PAHT 70 | 95.3 l/min | 1800 | 160 bar | G1½ , G1 | AISI 316 | 34 | 180B6187 |
| PAHT 80 | 110.0 l/min | 1800 | 160 bar | G1½ , G1 | AISI 316 | 34 | 180B6188 |
| PAHT 90 | 124.0 l/min | 1800 | 160 bar | G1½ , G1 | AISI 316 | 34 | 180B6189 |
Technical Data Sheet
Pumps intended for use in ATEX classified areas - Download pdf (232kb)
Please call +44 (0)1772 699 999 or email sales@mandmcontrols.com for current price.
