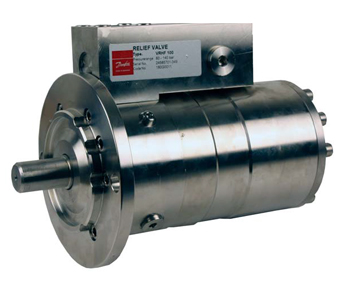

High-Pressure Pumps For Fire Fighting Type PAHF
The Danfoss PAHF pumps are especially designed for the high-pressure fire extinguishing industry. It is dedicated for the water mist market for both land and marine applications. The pumps are designed for operation on tap water and the size ranges from 20 ccm/rev to 40 ccm/rev and can provide a l ow from 14 to 115 l/min (3,7 to 30,3 gpm).
Two types of valves are designed for direct mounting on the pump, depending on the specific need: a check valve and a relief valve.
The axial piston principle provides very high efficiency, small and compact design and long service life.
The Danfoss pumps are water lubricated and do not involve any other lubricant, making this unique pump maintenance free over its entire service life.
Features
• Very compact and light pump (can be installed with direct coupling to an electric motor/combustion engine)
• Generates insignificant pulsations in the pressure line
• No preventive maintenance required (no periodic service like eg change of lubricant and wear parts)
• Service life 500 hours
• All parts of the pump are made of non-corrosive material and the surface is easy to clean
• Few wearing parts
• Pumps can be directly boosted, without the need of a tank
PAHF
• Pump sizes with nominal flow ranges from 14 l/min up to 115 l/min / 3,7 up to 30 GPM
• Flow is proportional to the shaft rpm.
• Geometric displacement 20-40 cm3/rev
• RPM range from 700 to 3600 /min
• Continuous pressure up 160 bar / 2300 PSI (peak up to 220 bar / 3200 PSI)
• Fluid: clean tap water according to EU-Directive 98/83/EC (10µ absolute filtration, ß-value > 5000)
• Fluid temperature 3° to 50° C / 37° - 122° F (with antifreeze -30° - 50° C / -22° - 122° F)
• Ambient temperature 0° C to 50° C / 32° - 122° F
• Total efficiency over 90% on certain pumps and certain load conditions
• Stainless steel AISI 304 design
For the complete range of Danfoss PAHF Water Pumps go to our dedicated website: High Pressure Water Equipment - PAHF Pumps
| Pumps for Fire Fighting | ||||||||
| Type | Flow @ 1500 rpm (100 bar) |
Flow @ 3600 rpm(100 bar) | Maximum Shaft Speed | Maximum Pressure | Ports/ Connection | House Material | Weight kg | Ordering Code |
|---|---|---|---|---|---|---|---|---|
| PAHF 20 | 28,6 l/min | 70 l/min | 3600 | 160 bar | G1½ , G¾** | AISI 304 | 16,2 | 180B0092 |
| PAHF 25 | 36,1 l/min | 88,1 l/min | 3600 | 160 bar | G1½ , G¾** | AISI 304 | 16,2 | 180B0093 |
| PAHF 32 | 45,9 l/min | 112 l/min | 3600 | 160 bar | G1½ , G¾** | AISI 304 | 16,2 | 180B0094 |
| PAHF 40 | 56,8 l/min | 115,3 l/min* | 3000 | 160 bar | G1½ , G¾** | AISI 304 | 16,2 | 180B0095 |
| * For PAHF 40 max is 3000rpm | ||||||||
| ** With the use of the adapter - see valve add-ons below | ||||||||
| Adaptor | |||||||
| Type | This adaptor adds a ¾" outlet port to the PAHF 2040 pumps. It can be directly mounted using 4 M8 screws | Ports/ Connection | House Material | Weight kg | Ordering Code | ||
|---|---|---|---|---|---|---|---|
| Adaptor | - | G3⁄4 | AISI 304 | 0,33 | 180B0096 | ||
| Relief Valve | |||||||
| Type | Max. Pressure | Adjustable range | Rated Flow | Ports/ Connection | House Material | Weight kg | Ordering Code |
| VRHF 100 | 160 bar | 80140 bar | 100 l/min | G3⁄4 | AISI 304 | 2,83 | 180G0011 |
| Check Valve | |||||||
| Type | Max. Pressure | - | Max. Flow | Ports/ Connection | House Material | Weight kg | Ordering Code |
| VCH 150 | 160 bar | - | 150 l/min | G3⁄4 | AISI 304 | 0,87 | 180H0117 |
| Integrated Relief Valve and Unloader Valve | |||||||
| Type | Max. Pressure | - | Max. Flow | Ports/ Connection | House Material | Weight kg | Ordering Code |
| VPHF 100 | 160 bar | - | 100 l/min | G3⁄4 | AISI 304 | 7 | 180G0010 |
Technical Data Sheet
High-Pressure Pumps For Fire Fighting Type PAHF - Download pdf (1.34mb)
