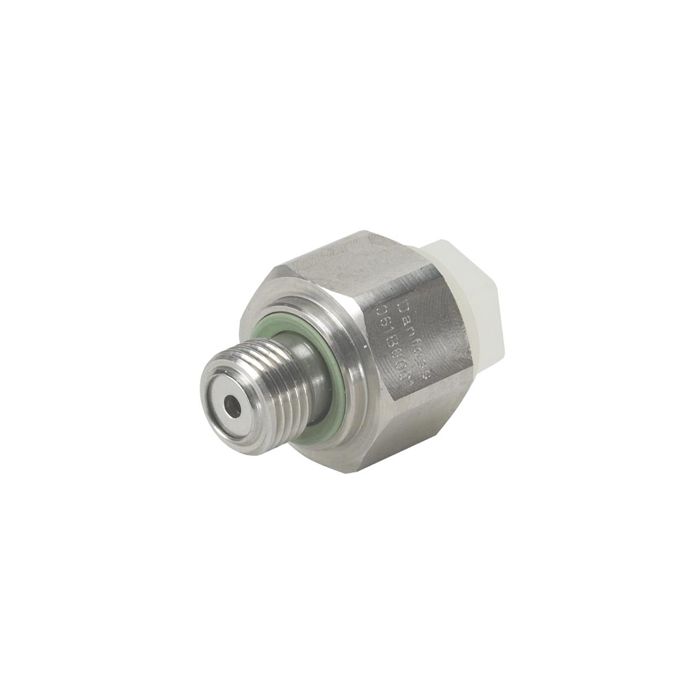

061B6003 Danfoss MBV2000-223 Isolation Valve

Availability: See "More Information" below
SKU
061B6003
£27.11 £22.59

061B6003 Danfoss MBV2000-223 Isolation Valve
External connection size   : G1/2 A DIN3852E
Internal connection size    : G1/2 DIN3852
Width across flats              : 30mm
Max. working pressure      : 600 bar
Max. burst pressure           : 1500 bar
Operating temperature      : -20 to 200°C

Specifications:
• Operating pressure: Up to 600 bar
• Burst pressure: 1500 bar
• Temperature: -20° C to 200° C
• Wetted parts: All metal parts in contact with medium DIN 17440-1.4404 (AISI 316L)
• Gasket: Viton
• Designed to fit between Danfoss pressure transmitters and fluid-filled systems and offers a fast and efficient method of connection and removal of Danfoss products

More Information
Product Name 061B6003 Danfoss MBV2000-223 Isolation Valve
SKU 061B6003
Product Code MBV2000
Specification key MBV2000-223
Stock Status Usually Ships in 7 to 10 Days
Timed Deliveries PLEASE DO NOT SELECT TIMED DELIVERIES FOR THIS PRODUCT - CALL +44 (0)1772 699 999 If Urgent
Weight KG 0.300000
International Article Number (EAN) 5702423133185
Export Commodity Code 8481 8059
Manufacturer DANFOSS
Country of Origin (EU)
