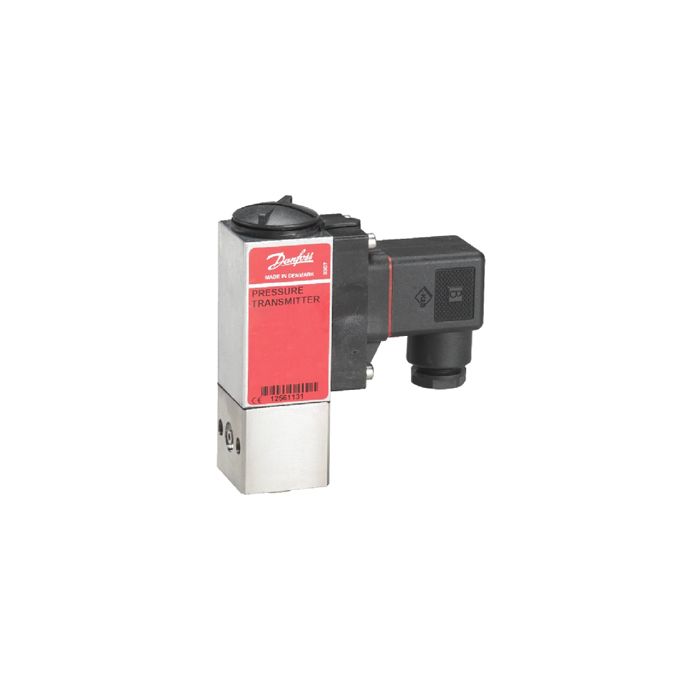

060N1035 Sensor MBS 5100-1811-1DB04
Pressure Range: 0 to 6 bar
Output Signal: 4 to 20 mA
Voltage: 10-32 VDC
Electrical Connection: DIN 43650-A, Plug PG11
Pressure Connection: G1/4 Female With Flange
Pressure Reference: Gauge Relative
Medium Temperature Range: -40 to 85°C
The Danfoss transmitter MBS 5100 is a ship approved high accuracy unit designed for use in almost all marine applications, and offers a reliable pressure measurement, even under harsh environmental conditions.
The pressure transmitter programme in block design is approved according to LR, DNV, GL, RINA, ABS, BV, NKK, PRS, MRS, KRS requirements, and covers a 4-20 mA output signal, absolute and gauge (relative) versions, measuring ranges from 0-1 to 0-600 bar, zero point and span adjustment, plug connection and female/flange pressure connections.
Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
|Product name||060N1035 Sensor MBS 5100-1811-1DB04|
|Product Code||MBS 5100|
|Specification key||MBS 5100-1811-1DB04|
|Stock Status||Usually Ships Sameday|
|Timed Deliveries||Timed Deliveries Available On This Product|
|International Article Number (EAN)||5702423059546|
|Export Commodity Code||9032 8900|
|Country of Origin||(EU)|
