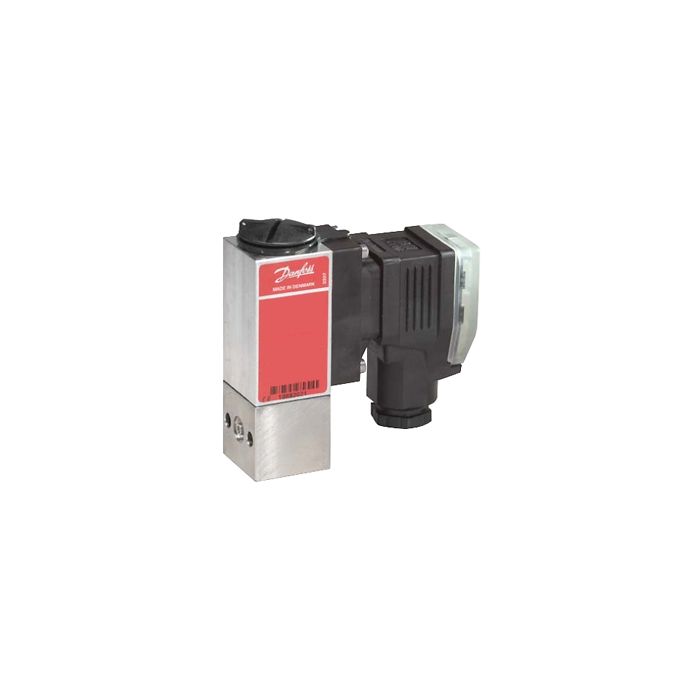

061B110466 MBC 5100-2431-2DB04 Danfoss Pressure Control 1 to 10 bar
061B110466 MBC 5100-2431-2DB04 Danfoss Pressure Switch
Regulating Range: 1 to 10 bar
Differential MIN Range: 1 bar
Differential MAX Range: 2.5 bar
Max. Working Pressure: 150 bar
Connection Size: G 1/4 with flange
Contact Function: SPDT
Electrical Connection:-EN 175301-803-A Pg 13.5
MBC 5100-2431-2DB04 Danfoss pressure switches are used in marine applications where space and reliability are the most important features. MBCs are compact pressure switches, designed according to our new block design to survive in the harsh conditions known from machine rooms onboard ships.
MBC 5100-2431-2DB04 have high vibration resistance and feature all commonly marine approvals. The fixed, but low differential guarantees accurate monitoring of critical pressures. MBV test valves can be delivered as standard option for MBC pressure switches.
All relevant marine approvals.
|Product Name||061B110466 MBC 5100-2431-2DB04 Danfoss Pressure Control 1 to 10 bar|
|Stock Status||Usually Ships Sameday|
|Timed Deliveries||Timed Deliveries Available On This Product|
|International Article Number (EAN)||5702423218691|
|Export Commodity Code||9032 2000|
|Country of Origin||(EU)|
