031E101066 CS Danfoss Pressure Control "LOW" 2-6 bar Pe

Availability: See "More Information" below
SKU
031E101066
£49.50 £41.25

031E101066 Danfoss CS Switch with Polyacetal Pressure Connection
Special versions with Polyacetal pressure connection - suitable for drinking water
Regulating Range: 2 to 6 bar
Differential MIN Range: 0.72 to 1 bar
Differential MAX Range: 1 to 2 bar
Max. Working Pressure: 6 bar
Connection Size: 1/2 bsp
Contact Function: TPST
Enclosure: IP43
Approval: KTW Drinking Water Approval
Reset: Automatic

031E101066 Danfoss CS Switch with Polyacetal Pressure Connection have a three-pole switch and adjustable differential.
The pressure switches are fitted with a manual switch that will lock the contact system in the open position independently of the pressure in the system.
For automatic start and stop of air compressors and water boosters.

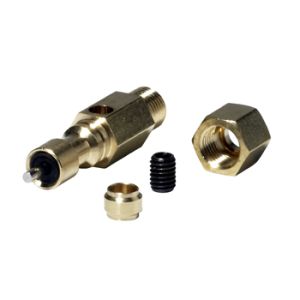

Note: If you require a pressure relief valve - These must be ordered separately

More Information
Product name 031E101066 CS Danfoss Pressure Control "LOW" 2-6 bar Pe
SKU 031E101066
Product Code CS
Stock Status Usually Ships in 7 to 10 Days
Timed Deliveries PLEASE DO NOT SELECT TIMED DELIVERIES FOR THIS PRODUCT - CALL +44 (0)1772 699 999 If Urgent
Weight KG 0.8000
International Article Number (EAN) 5702423218875
Export Commodity Code 9032 2000
Manufacturer DANFOSS
Country of Origin (EU)
