031E020566 CS Danfoss Pressure Control "LOW" 2-6 bar Pe
031E020566 CS 2-6 ¼ IP55 Danfoss pressure switch
Regulating Range: 2 to 6 bar
Differential MIN Range: 0.72 to 1 bar
Differential MAX Range: 1 to 2 bar
Max. Working Pressure: 6 bar
Connection Size: ¼ bsp
Contact Function: TPST
031E020566 CS 2-6 ¼ IP55 Danfoss pressure switches have a three-pole switch and adjustable differential.
The pressure switches are fitted with a manual switch that will lock the contact system in the open position independently of the pressure in the system.
For automatic start and stop of air compressors and water boosters.

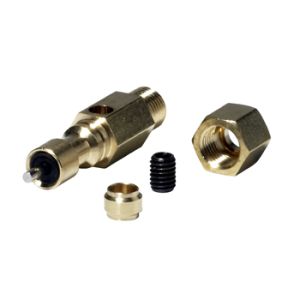

Note: If you require a pressure relief valve - These must be ordered separately
|Product name||031E020566 CS Danfoss Pressure Control "LOW" 2-6 bar Pe|
|Stock Status||Usually Ships Sameday|
|Timed Deliveries||Timed Deliveries Available On This Product|
|International Article Number (EAN)||5702423208678|
|Export Commodity Code||9032 2000|
|Country of Origin||(EU)|
