Danfoss Nessie Solenoid Valve Coils

Danfoss Nessie spare solenoid coils

Introduction
The Danfoss Nessie clip-on coils replace the top nut-mounted coils, and fit both normally open (NO) and normally closed (NC) valves.
All Nessie® NO valves will gradually have the length of armature tubes shortened to obtain the same length as armature tubes for NC valves

Coil Voltage        Watts       Old Coils (top nut)      Old Coils (top nut)       New coils (clip-on)

24  V 50 Hz         10 W            018Z7905                    018Z7920                      018F7920
220 V 50 Hz        10 W            018Z7906                    018Z7921                      018F7921
240 V 50 Hz        10 W            018Z7909                    018Z7924                      018F7924
24  V 60 Hz         10 W            018Z7907                    018Z7922                      018F7922
220 V 60 Hz        10 W                                                  018Z7925                      018F7925
240 V 60 Hz        10 W                                                  018Z7926                      018F7926
110 V 50/60 Hz  10 W            018Z7908                    018Z7923                      018F7923
12  V d.c.             18 W            018Z7915                    018Z7913                      018F7913
24  V d.c              18 W            018Z7916                    018Z7914                      018F7914

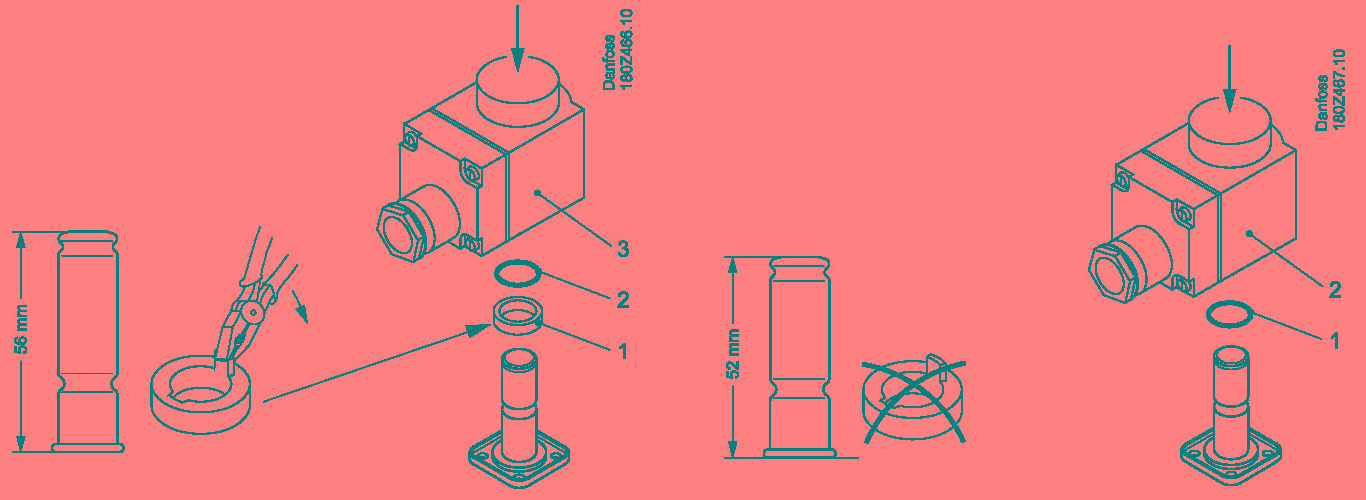

Mounting
Coil on valves with long armature tubes (NO valves)
1. Cut off the tap on the spacer ring and place the spacer ring on the armature tube.
2. Place the o-ring on the armature tube.
3. The coil is clicked on by means of a light pressure by hand – without using tools.

Coil on valves with short armature tubes (NC and NO valves)
1. Place the o-ring on the armature tube.
2. The coil is clicked on by means of a light pressure by hand – without using tools.
Do not use the spacer ring!
Danfoss Nessie coil assy




Click for further details on Danfoss Nessie products.
