068F4050 Valve EV227B 10B G 38E NC000 (EVSR10)

Availability: See "More Information" below
SKU
068F4050
£40.02 £33.35

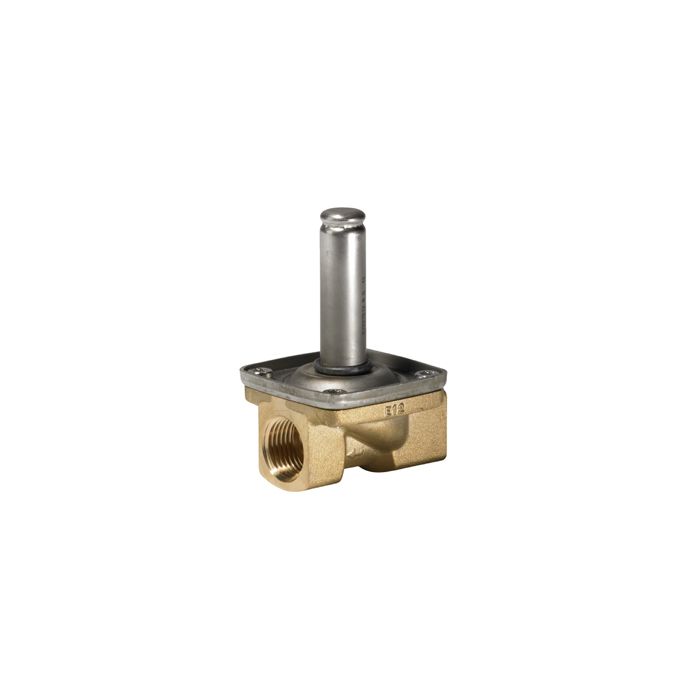

(068F4050) - Danfoss solenoid Valve EV227B 10B G 38E NC000 (EVSR10)
Type: EV227B NORMALLY CLOSED
Connection : G3/8
Kv m³/h : 1.5
Body matl. : Brass
Seal material : EPDM
Diff. pressure : 0.1 to 5 bar
Coil type : Only use with BE or BG coil

EV227B is a servo-operated 2/2-way solenoid valve programme, constructed with diaphragm in softer material and with stronger armature spring for optimum closing at low pressure differences.

• For neutral brine
• Viscosity: Up to 50 mm2/s (cSt)
• Ambient temperature: 50°C max.
• Coil enclosure: IP 67
• Thread connections: From G 3/8 to G 1
• Stainless steel screws for optimum corrosion resistance
• Only use with BE or BG coil

More Information
Product Name 068F4050 Valve EV227B 10B G 38E NC000 (EVSR10)
SKU 068F4050
Stock Status Usually Ships in 7 to 10 Days
Timed Deliveries PLEASE DO NOT SELECT TIMED DELIVERIES FOR THIS PRODUCT - CALL +44 (0)1772 699 999 If Urgent
Weight KG 0.319000
International Article Number (EAN) 5702422159001
Export Commodity Code 8481 8079
Manufacturer DANFOSS
Country of Origin (EU)
