Atex Explosive Area Coils

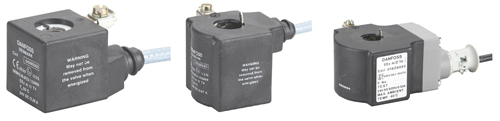

Danfoss solenoid valve coils intended for use in ATEX classified areas. Most Danfoss solenoid valves are available as an ATEX valve solution.
An ATEX approved solenoid valve consists of an ATEX certified coil and a certified valve.
Limitations for ATEX components compared to standard components. The limitations are described below.

Validity:
Approvals are only related to water as fluid. If other fluids are used they must be non-flammable fluids and comply with standard EN 13463-5 § 7.5.5.

Gases:
The valves are produced in materials resistant to most common gases. The user of the valves must secure that the materials used are resistant to the gases applied.

Temperature:
The valves must only be used in systems where the temperature for the pressure medium does not exceed a higher temperature than 60° C. Please see standard EN 982 § 5.3.4.4.1
Danfoss Atex approved coils
The ATEX 94/9/EC directive is one of the “new” European directives. The ATEX directive specifies the requirements for equipment intended for use in potentially explosive atmospheres. ATEX is derived from the French term “ATmosphères EXplosives”.
The ATEX directive replaces the previous EC directive 76/117/EC which only included electrical equipment, whereas ATEX includes both electrical and non-electrical equipment.
Included in the ATEX Directive: -
• Mining and non-mining equipment.
• Explosive atmospheres caused by gas and dust.
• Electrical and non-electrical equipment.
• Equipment (machines, devices, built-in instruments or mobile devices).
• Security systems (equipment which can stop / limit explosions).
• Components (parts without any independent function).
• Security control and regulation devices intended for use outside explosive areas but which secure the equipment in the hazardous areas .

AR, Compact coils for explosive areas
Compact coil for valve range A, EEx m II T4 ATEX 100A Zone 1 approved
• Compact
• Suitable for use installations where flammable liquids are produced, tapped or transported
• Ambient temperature: Up to +55°C
• IP 65 according to IEC 529
• Supplied with 5.5 moulded-on 3-core cable

Code number

Type

Power cons. [W]

Supply voltage [V] a.c.

Supply voltage [V] d.c.

Freq. [Hz]

Coil conn.

Cable length [m]

Encl.

Ambient temp. [°C]

Actuator system

042N5503

AR024D

7,0 W

-

24,00 V

-

Cable

3,00 m

IP65

-40 - 60 °C

9 mm

042N5505

AR024D

7,0 W

-

24,00 V

-

Cable

5,50 m

IP65

-40 - 60 °C

9 mm

042N5515

AR024D

4,8 W

-

24,00 V

-

Cable

5,50 m

IP65

-40 - 60 °C

9 mm

042N5533

AR230C

6,0 W

230 V

-

50/60 Hz

Cable

3,00 m

IP65

-40 - 60 °C

9 mm

042N5535

AR230C

6,0 W

230 V

-

50/60 Hz

Cable

5,50 m

IP65

-40 - 60 °C

9 mm



BO, High performance coils for explosive areas
Suitable for explosive areas for valve range B, 10 W ac/dc, EEx m II T4 ATEX 100A Zone 1 approved
• Suitable for explosive areas (zone 1)
• Encapsulated coils with long operation life
• Ambient temperature: Up to +40°C
• Medium temperature: Up to +90°C
• IP 67 for moist environments with flying lead
• Seal kit for extremely wet or aggressive environments available

Code number

Type

Power cons. [W]

Supply voltage [V] a.c.

Supply voltage [V] d.c.

Freq. [Hz]

Ambient temp. [°C]

Coil conn.

Cable length [m]

Encl.

Actuator system

018Z6591

BO240C

10,0 W

240 V

-

50/60 Hz

-40 - 60 °C

Cable

5,00 m

IP67

13.5 mm

018Z6592

BO230C

10,0 W

230 V

-

50/60 Hz

-40 - 60 °C

Cable

5,00 m

IP67

13.5 mm

018Z6593

BO110C

10,0 W

110 V

-

50/60 Hz

-40 - 60 °C

Cable

5,00 m

IP67

13.5 mm

018Z6594

BO048C

10,0 W

48 V

-

50/60 Hz

-40 - 60 °C

Cable

5,00 m

IP67

13.5 mm

018Z6595

BO024C

10,0 W

24 V

-

50/60 Hz

-40 - 60 °C

Cable

5,00 m

IP67

13.5 mm

018Z6596

BO024D

11,0 W

-

24,00 V

-

-40 - 60 °C

Cable

5,00 m

IP67

13.5 mm



BP, High performance coils for explosive areas
Compact, suitable for explosive areas, for valve range B, 16 W dc, EEx m II T4 ATEX 100A Zone 1 approved
• Suitable for explosive areas (Zone 1)
• Encapsulated coils with long operation life
• Ambient temperature: Up to +55°C
• Medium temperature: Up to +90°C
• IP 67 for moist environments with moulded-in 3-core cable
• Seal kit for extremely wet or aggressive environments available

Code number

Type

Power cons. [W]

Supply voltage [V] d.c.

Freq. [Hz]

Ambient temp. [°C]

Coil conn.

Encl.

Actuator system

018Z6623

BP024D

10,5 W

24,00 V

-

-40 - 60 °C

Cable

IP67

13.5 mm

018Z6653

BP230A

12,0 W

-

50 Hz

-40 - 60 °C

Cable

IP67

13.5 mm



Other Danfoss ATEX Controls

Pressure Control type MP 55E II 3 G EEx nL IIC T6
The differential pressure controls are suitable for use in installations located in potentially explosive atmospheres.
• ATEX Category 3 (Zone 2).
• Grade of enclosure: IP 20.
• Max working pressure PS = 17 bar.
• ATEX design
• Gold contactors.
• Stainless steel bellow with restricted movement.
• Soldering connection.
NOTE: Contact loads - Must be used with reliable means of limiting the voltage and current to prevent sparks between

Pressure Control type KPE II 3 G EEx nL IIC T6
The pressure controls are suitable for use in installations located in potentially explosive atmospheres.
• ATEX Category 3 (Zone 2).
• Grade of enclosure: IP 30 or IP 40
• Max working pressure: KP 1E: PS = 8 bar.
• KP 7E: PS = 32 bar
• ATEX design
• Gold contactors.
• Stainless steel bellow with restricted movement.
• Soldering connection.
NOTE: Contact loads - Must be used with reliable means of limiting the voltage and current to prevent sparks between the contact surfaces. This could be zener diodes or Ex barriers.

Pressure Transmitter Type MBS 4201 II 1 G EEx ia IIC T4 – T6
The pressure transmitters are suitable for use in installations located in potentially explosive atmospheres.
• ATEX Category 1 (Zone 0).
• Grade of enclosure: IP 65 / IP67.
• Measuring range 0 - 600 bar.
NOTE: Must be used in conjunction with safety barriers

RT- pressure and temperature controls II 2 G EEx ia IIC T6
The RT- pressure and temperature controls are suitable for use in installations located in potentially explosive atmospheres.
• ATEX design
• ATEX Category 2 (Zone 1)
• Grade of enclosure IP 67
• Gold contactors
• Stainless steel bellow with restricted movement
• Stainless steel frame (conductive)
NOTE: Contact loads - Must be used with reliable means of limiting the voltage and current to prevent sparks between the contact surfaces. This could be zener diodes or Ex barriers.

For full technical details on all Danfoss products visit http://www.mandmcontrols.co.uk/danfoss
