132U4003 1.1/2" Danfoss Valve EV220BW 40B G 112E NC000

Availability: See "More Information" below
£312.47 £260.39

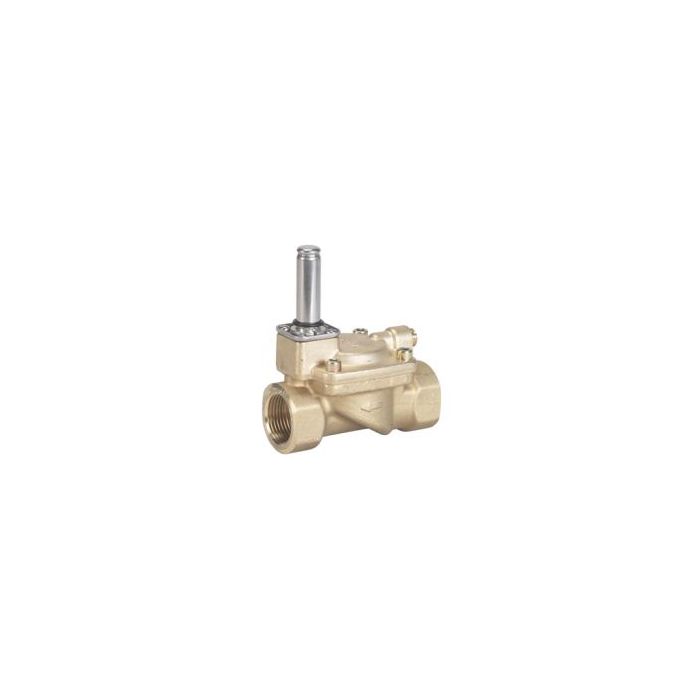

132U4003 EV220BW 40B G 112E NC000 Danfoss Solenoid Valve for mains water
Coil Types: BA, BB, BE, BG, BO, BP
Function: 2-Way NC
Body Material: Brass
Seal Material: EPDM
Pipe Size: G1.1/2
Orifice: 40mm
Temp Range: 0 to 90°C
Differential Pressure Ranges:- 0.3 to 10 Bar (AC)(DC) Coils

Danfoss solenoid valve EV220BW 132U4003 is a universal indirect servo-operated 2/2-way solenoid valve program. Valve body in brass, dezincification resistant brass and stainless steel ensures that a broad variety of application can be covered. Built-in pilot filter as standard, adjustable closing time and enclosures up to IP67 ensures optimal performance even under critical working conditions.

• 2/2-way
• Servo-operated
• DN 15 - DN 50
• Valve body available in brass, DZR brass, gun metal or stainless steel
• NC and NO versions
• ISO 228/1 or NPT thread connection (EVSI and EVSI-U)
• Built in filter for protection of pilot system
• Water hammer damped
• Adjustable closing time available

More Information
Product Name 132U4003 1.1/2" Danfoss Valve EV220BW 40B G 112E NC000
SKU 132U4003
Product Code EV220BW
Specification key EV220BW 40B G 112E NC000
Stock Status Usually Ships Sameday
Timed Deliveries Timed Deliveries Available On This Product
Weight KG 3.340000
International Article Number (EAN) 5702428539920
Export Commodity Code 8481 8079
Manufacturer DANFOSS
Country of Origin (EU)
