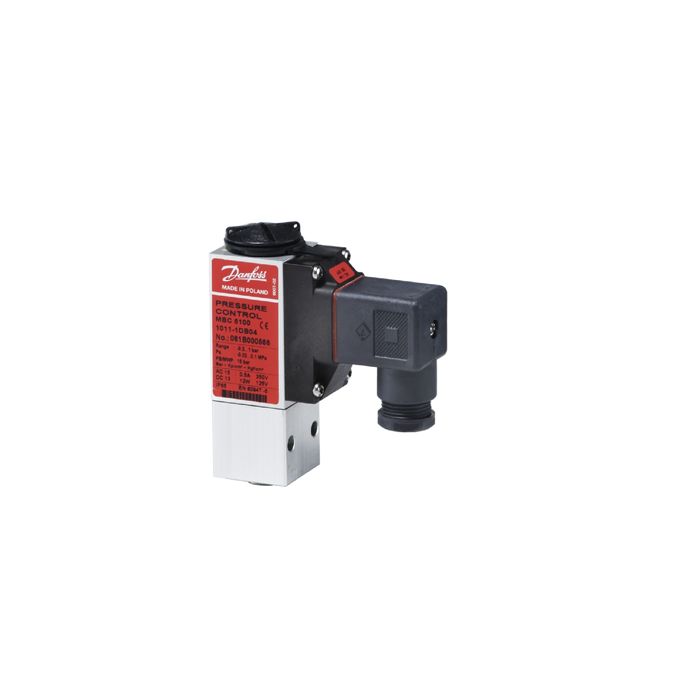

061B300066 MBC5100–3231-1CB04 Danfoss Pressure Control 5 to 20 bar
061B300066 now use 061B100066 MBC5100-3231-1CB04 Danfoss Pressure Switch
061B100066 MBC5100-3231-1CB04 replacement now carries ABS, BV, CCC, CCS, CE, DNV, GL, KRS, LR, NKK, RINA, RMRS approval
Regulating Range:5 to 20 bar
Differential MIN Range: 1 bar
Differential MAX Range: 2.50 bar
Max. Working Pressure: 150 bar
Connection Size: G1/4 ISO 228-1 pipe thread
Contact Function: SPDT
Danfoss 061B300066 now 061B100066 MBC5100-3231-1CB04 pressure switches are used in marine applications where space and reliability are the most important features. MBCs are compact pressure switches, designed according to our new block design to survive in the harsh conditions known from machine rooms onboard ships.
MBCs have high vibration resistance and feature all commonly marine approvals. The fixed, but low differential guarantees accurate monitoring of critical pressures. MBV test valves can be delivered as standard option for MBC pressure switches.
All relevant marine approvals.
|Price Ex VAT||£199.24|
|Product Name||061B300066 MBC5100–3231-1CB04 Danfoss Pressure Control 5 to 20 bar|
|Stock Status||Usually Ships in 7 to 10 Days|
|Timed Deliveries||PLEASE DO NOT SELECT TIMED DELIVERIES FOR THIS PRODUCT - CALL +44 (0)1772 699 999 If Urgent|
|Tariff code||9032 2000|
|Country of Origin||(EU)|
|UK Shipping Ex. VAT||£8.50|
