061B108166 MBC 5100-2231-3DA05 Danfoss Pressure Control 1 - 6 bar

Availability: See "More Information" below
£148.92 £124.10

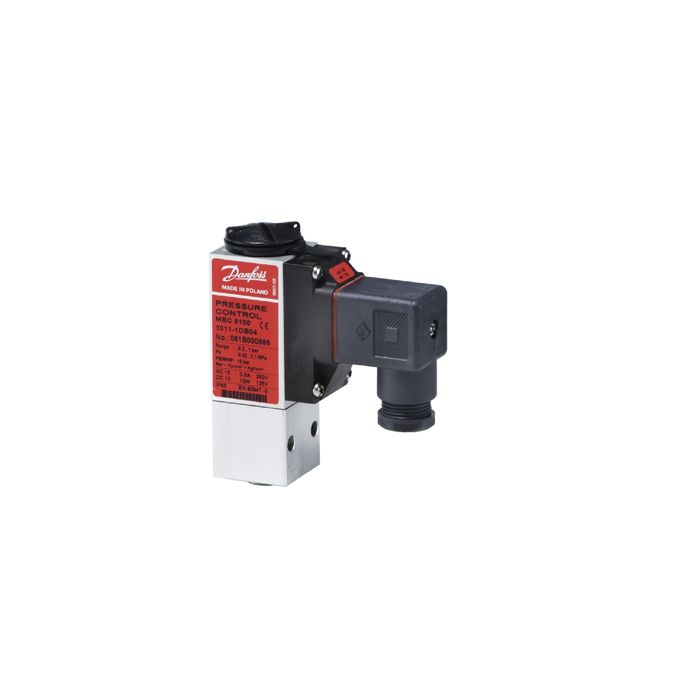

061B108166 Danfoss Pressure Switch MBC 5100-2231-3DA05
Regulating Range:1,00 - 6,00 bar (Factory pre-set 4 bar falling)
Differential MIN Range: 1 bar
Differential MAX Range: 2.5 bar
Max. Working Pressure: 150 bar
Connection Size: M10x1 female with flange connection
Contact Function: SPDT
Electrical Connection: Pg 9 plug (DIN 43650 A)
Reset: Automatic

Danfoss 061B108166 MBC5100-2231-3DA05 pressure switches are used in marine applications where space and reliability are the most important features. MBCs are compact pressure switches, designed according to our new block design to survive in the harsh conditions known from machine rooms onboard ships.
061B108166 MBC 5100-2231-3DA05 have high vibration resistance and feature all commonly marine approvals. The fixed, but low differential guarantees accurate monitoring of critical pressures. MBV test valves can be delivered as standard option for MBC pressure switches.
All relevant marine approvals.

More Information
Product Name 061B108166 MBC 5100-2231-3DA05 Danfoss Pressure Control 1 - 6 bar
SKU 061B108166
Product Code MBC5100
Specification key MBC5100-2231-3DA05
Stock Status Usually Ships in 3 weeks
Timed Deliveries PLEASE DO NOT SELECT TIMED DELIVERIES FOR THIS PRODUCT - CALL +44 (0)1772 699 999 If Urgent
Weight KG 0.200000
International Article Number (EAN) n/a
Export Commodity Code 9032 2000
Manufacturer DANFOSS
Country of Origin (EU)
