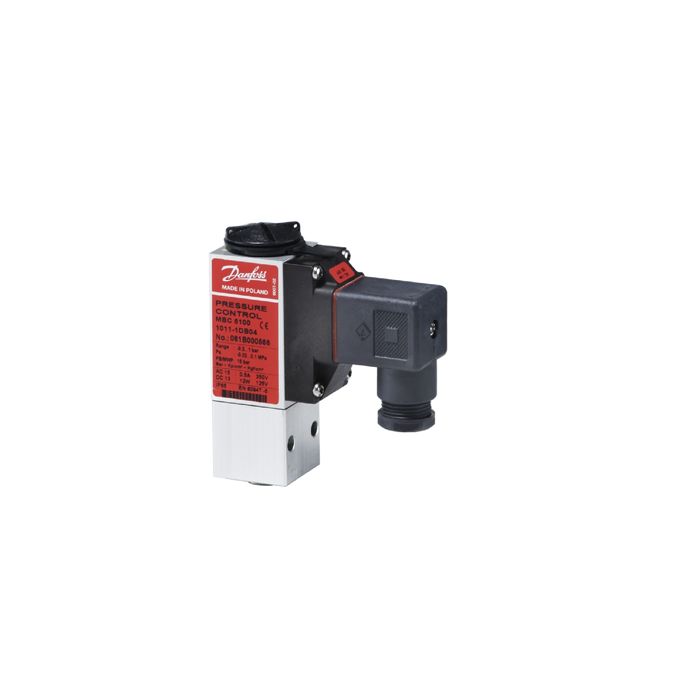

061B009066 MBC 5100-1211-3DA05 Danfoss Pressure Control -0.2 to 4 bar
061B009066 MBC 5100-1211-3DA05 Danfoss pressure switches are block design to survive in the harsh conditions known from machine rooms onboard ships
Regulating Range:-0.2 to 4 bar (Factory pre-set)
Differential MIN Range: 0.3 bar
Differential MAX Range: 0.45 bar
Max. Working Pressure: 15 bar
Connection Size: M10x1 female with flange connection
Contact Function: SPDT
Electrical Connection: Pg 9 plug (DIN 43650 A)
061B009066 MBC 5100-1211-3DA05 Danfoss pressure switches are used in marine applications where space and reliability are the most important features. MBCs are compact pressure switches, designed according to our new block design to survive in the harsh conditions known from machine rooms onboard ships.
061B009066 MBC 5100-1211-3DA05 have high vibration resistance and feature all commonly marine approvals. The fixed, but low differential guarantees accurate monitoring of critical pressures. MBV test valves can be delivered as standard option for MBC pressure switches.
All relevant marine approvals.
|Price Ex VAT||£171.50|
|Product Name||061B009066 MBC 5100-1211-3DA05 Danfoss Pressure Control -0.2 to 4 bar|
|Stock Status||Usually Ships in 3 weeks|
|Timed Deliveries||PLEASE DO NOT SELECT TIMED DELIVERIES FOR THIS PRODUCT - CALL +44 (0)1772 699 999 If Urgent|
|Tariff code||9032 2000|
|Country of Origin||(EU)|
|UK Shipping Ex. VAT||£8.50|
