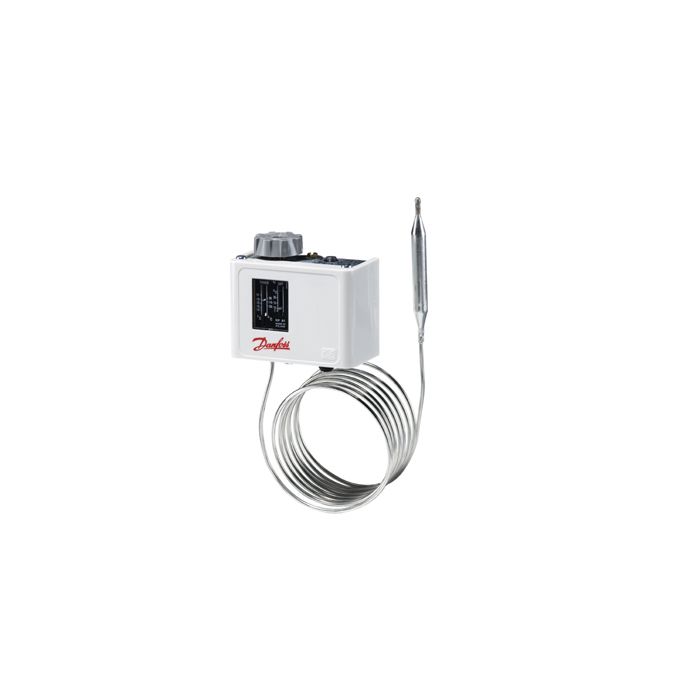

060L115566 KP81 Danfoss Temperature Control 80 to 150°C

Availability: See "More Information" below
£101.74 £84.78

060L115566 KP81 Danfoss Temperature Switch
Temperature Range: 80 to 150°C
Temp. Differential Range: 7 to 20°C
Max. Sensor Temperature: 200°C
Sensor Type: Remote Sensor With Capillary Tube
Capillary Length: 2000mm
Contact Function: SPDT
Reset: Max-Reset
Sensor Size: 9.5ø x 85mm

060L115566 KP81 Danfoss temperature switches are used for regulating, monitoring and alarm systems in industry. The KP series are temperature-operated electric circuit breakers. The thermostats are fitted with a single-pole switch (SPDT), and can control single-phase ac motors of up to 2 kW directly.
• Temperature ranges: 0° C to 150° C
• High contact load - Ultra short bounce-time
• Also available with gold plated contact systems
• Enclosure IP44 when mounted with top cover and back plate
• Also available with enclosure IP55 for OEM customers
• Small dimensions - space saving - easy to install
• Shock and impact resistant

More Information
Product Name 060L115566 KP81 Danfoss Temperature Control 80 to 150°C
SKU 060L115566
Product Code KP81
Stock Status Usually Ships in 3 to 5 Days
Timed Deliveries PLEASE DO NOT SELECT TIMED DELIVERIES FOR THIS PRODUCT - CALL +44 (0)1772 699 999 If Urgent
Weight KG 0.500000
International Article Number (EAN) 5702423148745
Export Commodity Code 9032 1081
Manufacturer DANFOSS
