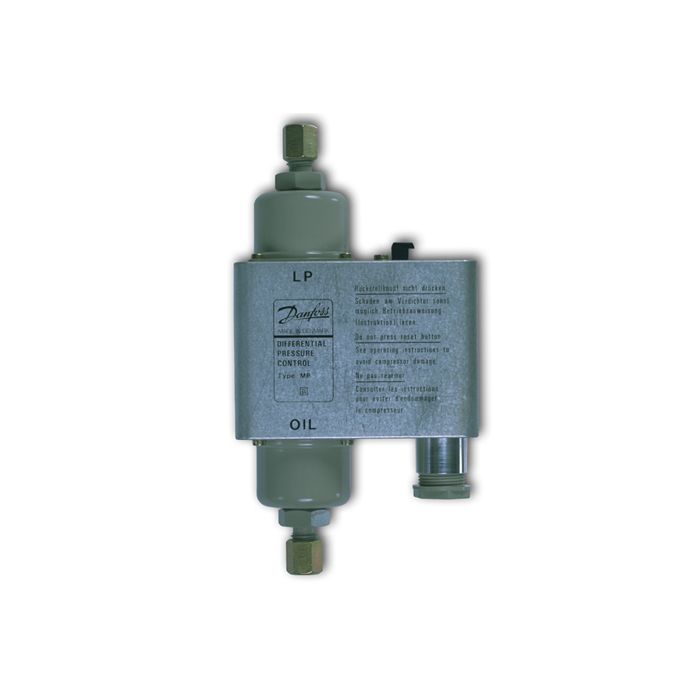

060B017166 MP 55 Oil Differential Pressure Switch

Availability: See "More Information" below
SKU/MPN
060B017166
£317.20 £264.33

060B017166 MP55 Oil Differential Pressure Control Differential range [bar]: 0,30 - 4,50 bar Electrical connection standard: EN 175301-803-A Ambient temperature [°C]: -40 - 60 °C Pressure connection size: 1/4 Inch Pressure connection type: Flare

MP 55 differential pressure control, adjustable differential, low differential pressure

Control voltage: 230 V or 115 V a.c. or d.c.
Permissible voltage variation: +10 - -15%.
Max. working pressure = 17 bar.
Max. test pressure = 22 bar.
Operation range, LP side: –1 - 12 bar Pe.
Temperature compensation: The time relay is temperature-compensated in the range -40 - +60°C.
Screwed cable entry: Pg 13.5.
Max. bellows temperature: 100°C.
Enclosure: IP 20 to IEC 529.

More Information
Price Ex VAT £264.33
Product Name 060B017166 MP 55 Oil Differential Pressure Switch
SKU/MPN 060B017166
Stock Status Usually Ships Sameday
Timed Deliveries Timed Deliveries Available On This Product
Weight KG 0.600000
GTIN/UPC/EAN 5702428365512
Tariff code 9032 2000
Brand DANFOSS
Country of Origin (EU)
UK Shipping Ex. VAT £8.50
