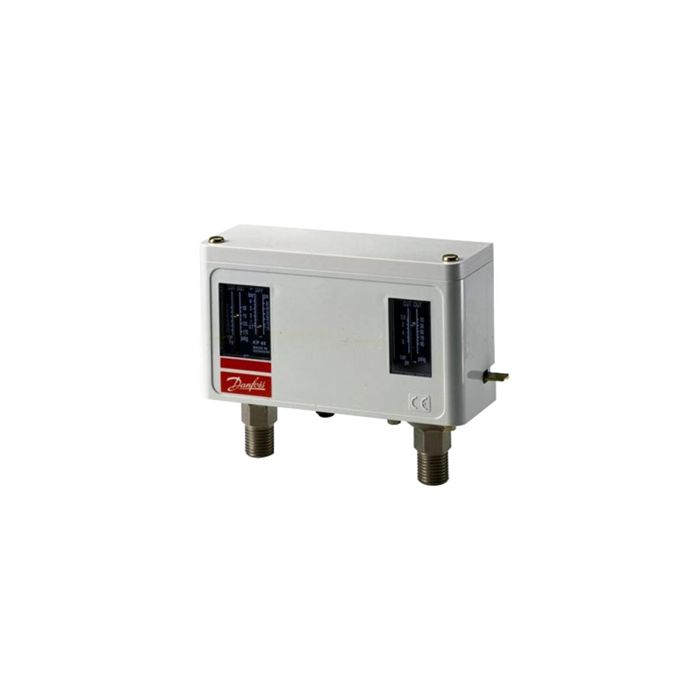

060-124366 KP15 Danfoss Pressure Control

Availability: See "More Information" below
£92.12 £76.77

060-124366 KP15 Danfoss Pressure Switch
Regul. left side [bar] Pe -0,20 - 7,50 bar
MWP left side [bar] Pe: 17,0 bar
Regul. right side [bar]Pe: 8,0 - 32,0 bar
MWP right side [bar] Pe: 35,0 bar
Diff. left side [bar] [bar] 0,70 - 4,00 bar
Diff. right side [bar] 4,0 bar
Connection size: Flare 1/4 in DIN 8906
Reset function: Right side:Max Reset, - Left side: Auto Reset
Encl.: IP44

060-124366 KP15 Danfoss dual pressure switch is designed for use as a pump guard to control and protect supply water pumps. It combines the functions of a pressure switch and a flow monitoring device. The lefthand pressure bellows control the pump pressure. The righthand bellows cut out the pump if the suction pressure is too low. In this way the pump is protected from running dry and consequent bearing damage.

• Wide regulation range
• For pumps or compressors
• Small dimensions; space saving & easy to install
• Ultra-short bounce times: Limit wear to a minimum and increases reliability
• Electrical connection from front of unit makes rack mounting easier and saves space
• Suitable for both ac and dc power
• Cable entry for 6-14 mm (diameter) cables
• Screwed cable entry (standards Pg 13.5 & 16) makes rewiring easy
• Efficient protection of water pumps in case of water supply fails

More Information
Price Ex VAT £76.77
Product Name 060-124366 KP15 Danfoss Pressure Control
SKU/MPN 060-124366
Product Code KP15
Stock Status Usually Ships Sameday
Timed Deliveries Timed Deliveries Available On This Product
Weight KG 0.500000
GTIN/UPC/EAN 5702422032939
Tariff code 9032 2000
Country of Origin (EU)
UK Shipping Ex. VAT £8.50
