032U865132 Valve EV224B 15B G 12N NO000 BB230CS

Availability: See "More Information" below
£221.98 £184.98

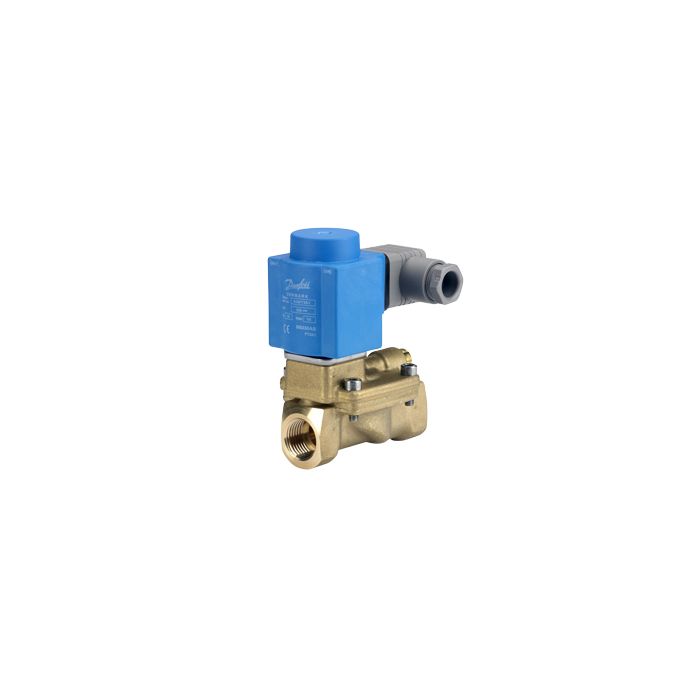

032U865132 - Danfoss Solenoid Valve EV224B 15B G 12N NO000 BB230CS
Coil voltage - 230V 50/60Hz
Function: 2-Way Normally Open
Body Material: Brass
Seal Material: NBR
Pipe Size: G1/2
Orifice: 15mm
Kv m³/h: 4
Temp Range: Ambient +80°C, Medium air up to 60°C
Differential Pressure Ranges:- 0.3 to 40 Bar (AC)

Danfoss EV224B is a high pressure indirect servo-operated 2/2-way solenoid valve with working pressure up to 40 bar, medium temperature up to 60 °C and available in NC and NO versions.
Built-in pilot filter as standard, adjustable closing time, enclosures up to IP67 (depending on coil) ensure a reliable and satisfactory function.

• For high pressure air applications up to 40 bar
• 2/2-way servo-operated
• DN 15 - DN 25
• Ambient temperature: +80°C
• NC and NO versions
• Brass valve body
• Based on proven EV220B technology
• For compressed air
• Differential pressure: Up to 40 bar
• Media temperature from -10oC to +60oC
• Coil enclosure: Up to IP67
• Thread connections:From G 1/2 to G 1
• Built in filter for protection of pilot system.

More Information
Product Name 032U865132 Valve EV224B 15B G 12N NO000 BB230CS
SKU 032U865132
Product Code EV224B
Specification key EV224B 15B G 12N NO000 BB230CS
Stock Status Usually Ships Sameday
Timed Deliveries Timed Deliveries Available On This Product
Weight KG 1.000000
International Article Number (EAN) 5702423271436
Export Commodity Code 8481 8079
Manufacturer DANFOSS
Country of Origin (EU)
