032U8052 Valve EV260B 6B G 14T NC000

Availability: See "More Information" below
£95.40 £79.50
(032U8052) - Danfoss EV260B Servo-Operated 2-Way Proportional Solenoid Valves

Type: EV260B Body Only
Suitable coil types: BK, BM and BL
Operation: Proportional
Function: Normally Closed
Connection: G1/4
Orifice size: 6mm
Seal material: PTFE
Differential pressure: 0,5 - 10 bar
Body material: Brass
KV m³/h: 0,8

Danfoss EV260B is a proportional (modulating) servo-operated 2-way solenoid valve program with connections from 1/4" to 3/4".
Through stepless regulation of the coil current, the armature can be placed in any position in the armature tube, thus setting the valve to any position between completely closed and completely open.
The valve is fully open when the coil current has reached its maximum value.

• Proportional (modulating)
• Medium water -10 to +80ºC
• For stepless flow regulation
• 2-way
• Servo-operated
• DN 6 - DN 20
• Ambient temperature: +50°C
• Short reaction time
• Linear characteristic thoughout the regulation range
• Closes on power failure (fail-safe function)
• IP 67 coil enclosure
• 24 V dc supply voltage

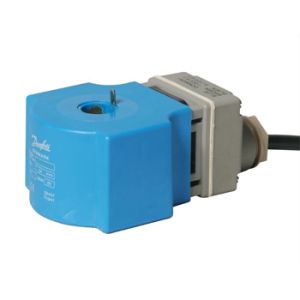

For Suitable coil selection (BK 300-600mA, BM 0-10V and BL 4-20mA) - Click Here

More Information
Price Ex VAT £79.50
Product Name 032U8052 Valve EV260B 6B G 14T NC000
SKU/MPN 032U8052
Stock Status Usually Ships in 2 weeks
Timed Deliveries PLEASE DO NOT SELECT TIMED DELIVERIES FOR THIS PRODUCT - CALL +44 (0)1772 699 999 If Urgent
Weight KG 0.477000
GTIN/UPC/EAN 5702423060993
Tariff code 8481 8079
Country of Origin (EU)
UK Shipping Ex. VAT £8.50
