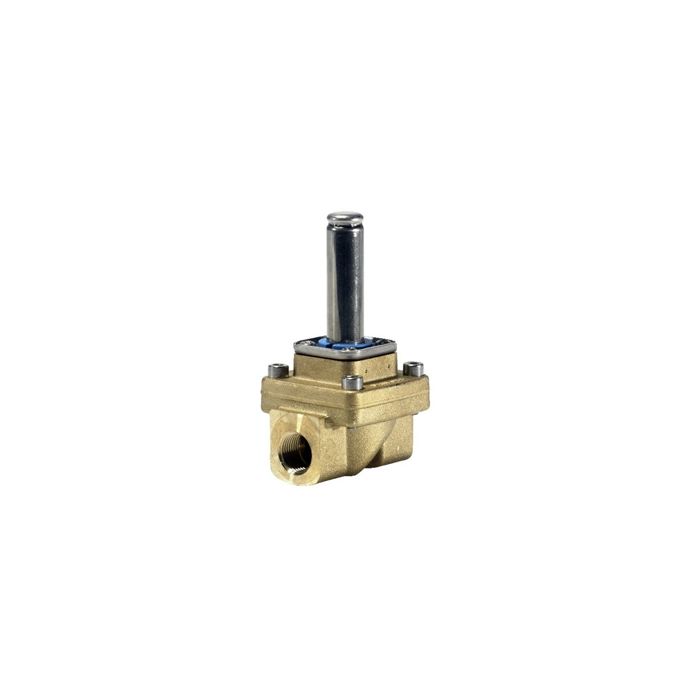

032U5250 Valve EV250B 10BD G 38E NC000
Coil Types: BB, BE, BG, BN
Function: 2-Way NC
Body Material: DZR Brass
Seal Material: EPDM
Pipe Size: G3/8
Temp Range: -30 to 140°C
Differential Pressure Ranges:- 0 to 10 Bar (AC), 0 to 6 Bar 18W(DC), 0 to 10 bar 20W(DC) Coils
The Danfoss EV250B range of assisted-lift solenoid valves has been popular for many years – and it’s easy to see why. The EV250B combines the best from a direct-operated valve with the benefits of a servo-operated valve. The result is a high-performance valve that can be used in almost all industrial applications and is particularly good for systems with low differential pressures and high flow. Many advantages in numerous applications
A great all-round valve, the EV250B series of assisted-lift solenoid valves is very successful. Not only is it flexible, it also offers a variety of benefits from easy installation to reduced maintenance costs.
Thanks to the closing spring and diaphragm, the EV250B is the preferred choice for many manufacturers in applications with low differential pressures, such as heating systems. But it’s also ideal for the customer who doesn’t know or can’t predict the exact pressure conditions. You can use the EV250B for a water treatment system, safe in the knowledge that it can handle all pressures from 0-10 bar.
And of course, it also has performance advantages. The moulded diaphragm and optimized valve cone limit water hammer (a pressure surge that judders the pipe and other machine parts), reducing noise and increasing the lifetime of the system. Designed for use with the user-friendly and well known clip-on coil system, it’s easy to install and mount. The built-in O-ring between coil and valve body gives an excellent seal and the dezincification resistant brass body ensures a long life, even in slightly aggressive technical water and steam.
Danfoss solenoid valves EV250B with assisted lift can operate from zero and up to 10 bar differential pressure. This 2/2-way valve program is especially to use in closed circuits with low differential pressure, but demanding moderate flow rates. Valve body in dezincification resistant brass for ensuring a long life even in connection with aggressive steam media. EV250B is compatible with the broad Danfoss coil program with enclosures from IP00 up to IP67. Medium temperatures up to 140 °C (low pressure steam).
• Assisted lift operated
• DN 10 - DN 22
• DZR brass valve body
• NC (normally closed) or NO (normally open)
• From zero differential pressure
• Especially suitable for closed circuits and for emptying tanks
• Available with WRAS, VA and UL approvals
• ISO or NPT thread connections
|Product Name||032U5250 Valve EV250B 10BD G 38E NC000|
|Specification key||EV250B 10BD G 38E NC000|
|Stock Status||Usually Ships Sameday|
|Timed Deliveries||Timed Deliveries Available On This Product|
|International Article Number (EAN)||5702423179138|
|Export Commodity Code||8481 8079|
|Country of Origin||(EU)|
