003N8210 FJVA 15 Thermostatic valve 0-30°C

Availability: See "More Information" below
SKU
003N8210
£176.46 £147.05

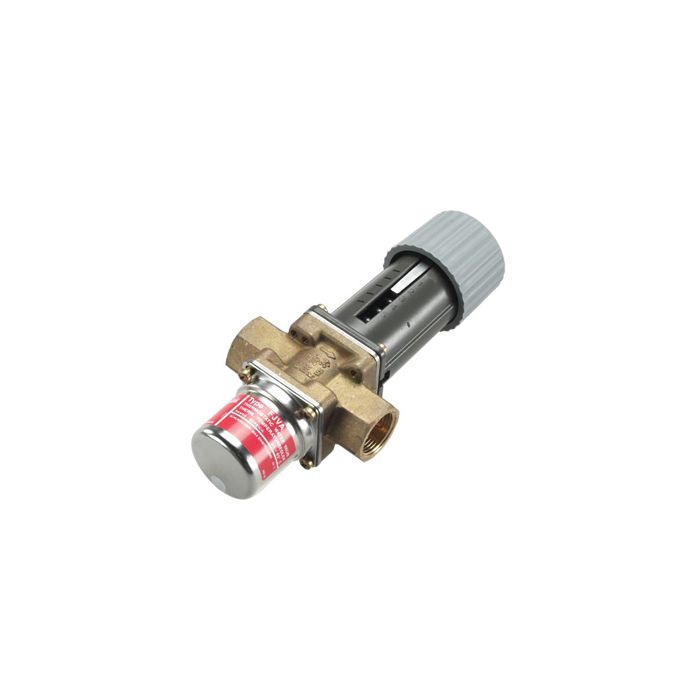

(003N8210) - Danfoss FJVA 15 Thermostatic Valve

Type: FJVA15
Range: 0 to 30°C
Connection: G1/2"
Kvm³/h: 1.9
Media Temp.°C: -25 to +55°C
Bypass: ∅2mm

Danfoss FJVA 15 valves are for applications where, because of installation problems, etc., it is desirable to avoid using a capillary tube. This applies mainly where regulation accuracy requirements are more moderate and where an integral bypass can be accepted.

In FJVA the whole bellows element is used as the sensor. The valve reacts to the cooling water temperature and therefore it must always be installed in the return line. Thus, indirect regulation is involved.

To ensure the medium temperature to influence the thermostatic element, when the valve is closed, a by-pass in the valve provides a constant minimal flow through the valve.

More Information
Product name 003N8210 FJVA 15 Thermostatic valve 0-30°C
SKU 003N8210
Stock Status Usually Ships in 7 to 10 Days
Timed Deliveries PLEASE DO NOT SELECT TIMED DELIVERIES FOR THIS PRODUCT - CALL +44 (0)1772 699 999 If Urgent
Weight KG 1.6000
International Article Number (EAN) 5702423004973
Export Commodity Code 8481 8059
Manufacturer DANFOSS
Country of Origin (EU)
