003N0299 AVTA 15 Danfoss Thermostatic valve 25-65°C

Availability: See "More Information" below
SKU
003N0299
£284.54 £237.12

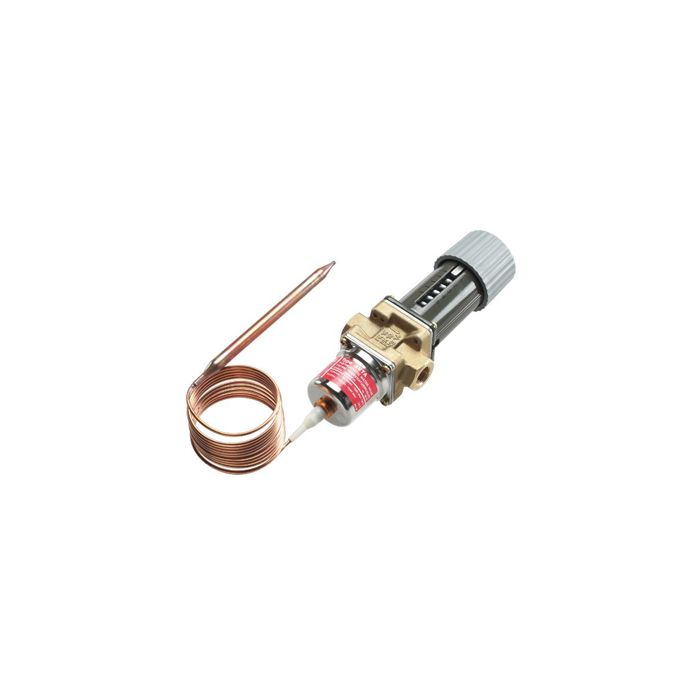

(003N0299) - Danfoss AVTA 15 Thermostatically Operated Valve
Sensor Temperature Range: 25 to 65°C
Medium Temperature Range: -25 to 130°C
Pipe Connection: 1/2 bsp
Orifice Size: 15mm
Body Material: Brass
Charge: Mass
Capillary Tube Length: 2M Armoured

The Charge is a mix of liquid and gas. Due to the volumetric conditions the sensor must be installed warmer than the valve, since the liquid Surface (regulation point) must be in the Sensor.
• Small sensor dimensions - Ø 9,5 x 190 mm
• Short time constant
• Sensor must always be installed warmer than the valve
• Max. pressure on sensor 25 bar

More Information
Product Name 003N0299 AVTA 15 Danfoss Thermostatic valve 25-65°C
SKU 003N0299
Product Code AVTA15
Stock Status Usually Ships in 3 to 5 Days
Timed Deliveries PLEASE DO NOT SELECT TIMED DELIVERIES FOR THIS PRODUCT - CALL +44 (0)1772 699 999 If Urgent
Weight KG 1.600000
International Article Number (EAN) 5702423018246
Export Commodity Code 8481 8059
Manufacturer DANFOSS
Country of Origin (EU)
